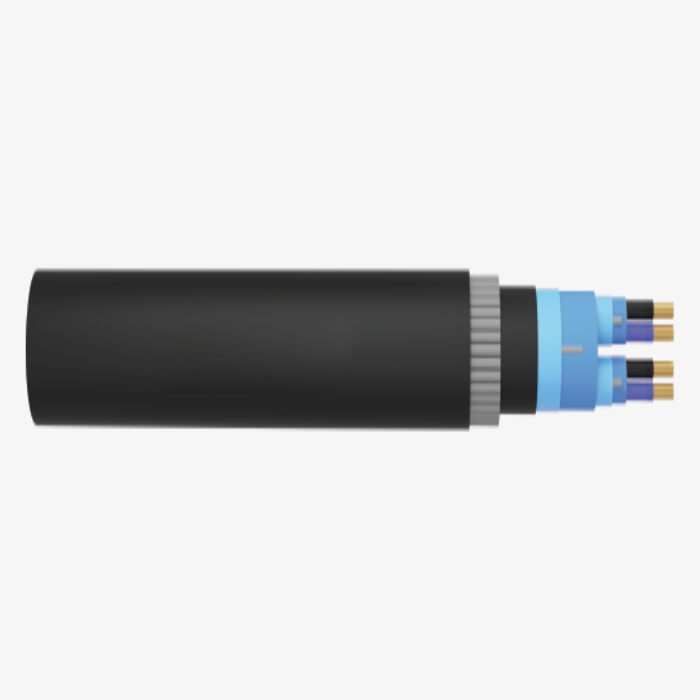

Instrumentation Cable – 500V (BS EN 50288-7) Copper Conductor | PVC Insulated | SWA | PVC Sheathed | Individually & Overall Screened

Cables are generally designed for indoor and outdoor that convey low energy electrical signals used for monitoring or controlling electrical power systems and their associated processes. Typical applications include industrial equipment control, broadcasting, assemble equipment or mass transit systems.

<span class="ts-tooltip button-tooltip">Compare</span>

Description

Technical Details
  • Conductor: Stranded annealed plain / tinned Class 2 or Flexible Class 5 copper conductor as per EN 60228
  • Insulation: PVC as per EN 50290-2-21
  • Insulation Colour: Pair Colour: Blue & Black with number printing
  • Armouring: Galvanized Steel Wire Armour (GSWA)
  • Outer Sheath: PVC (Polyvinyl Chloride) as per EN 50290-2-22
  • Voltage Grade: 500V
  • Operating Temperature: Fixed: -15°C to +70°C
  • Flame Retardant: As per customer requirement
Summary
  • Standard Compliance: BS EN 50288-7, IEC 60228, IEC 60332-1 (Other standards upon request)
