Cable ladder

MATERIAL STANDARD

  • Mild Steel Plain – BS EN 10025-2, BS EN 10130/10131, JIS G 3141 or Equivalent.

  • Mild Steel Pre Galvanized – BS EN 10346.

  • Stainless Steel – BS EN 10088-2, BS EN 10028-7.

  • Pregalvanized Steel or hot dip galvanized before fabrication (HDGBF) as per BS EN 10142.

  • Hot dip Galvanized after fabrication (HDGAF) as per BS EN 1461.

  • Epoxy polyester Powder coated to any RAL colour.

  • Aluminium Cable ladder.

  • Stainless Steel cable ladder to AISI 304 and AISI 316L (After welding passivation is done at weld area locally).
<span class="ts-tooltip button-tooltip">Compare</span>

Description

FEATURES

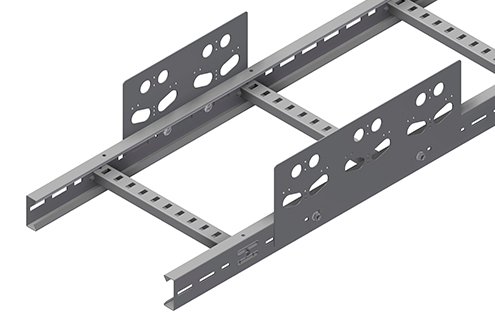

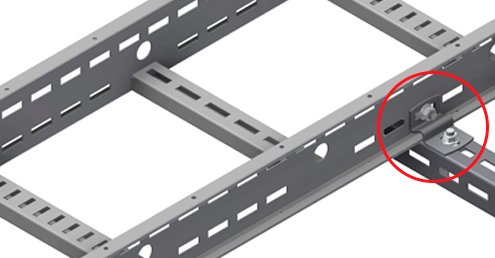

  • Slotted side rail eliminating site drilling for connection of splice plates when reducing ladder lengths.

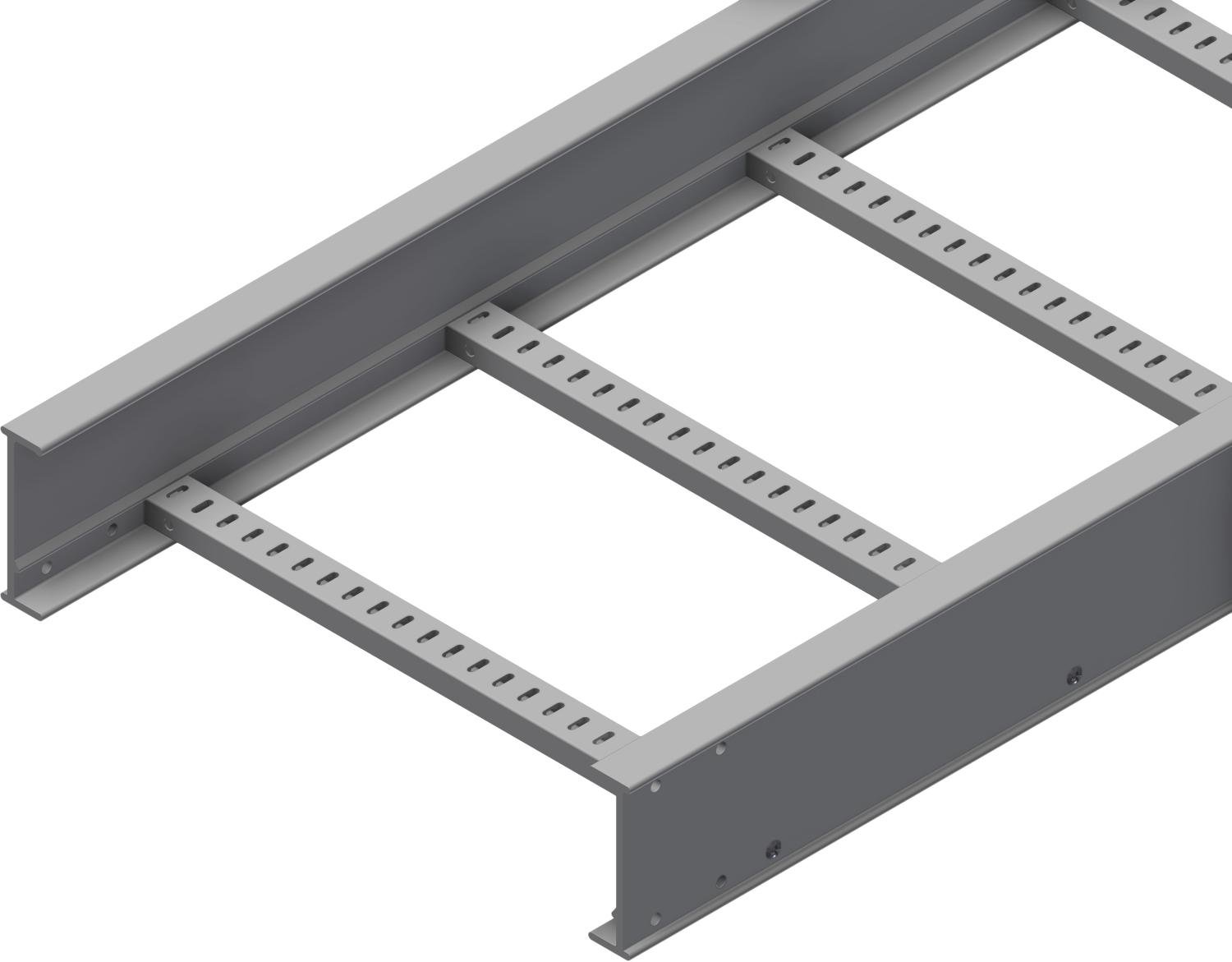

  • All welded steel construction with unique C-section side members for maximum strength and load capability.

  • Ladder is available in various widths to satisfy most cable loading and application requirements.

  • Side rails and rungs are designed with smooth edges to prevent damage to cables during installation.
